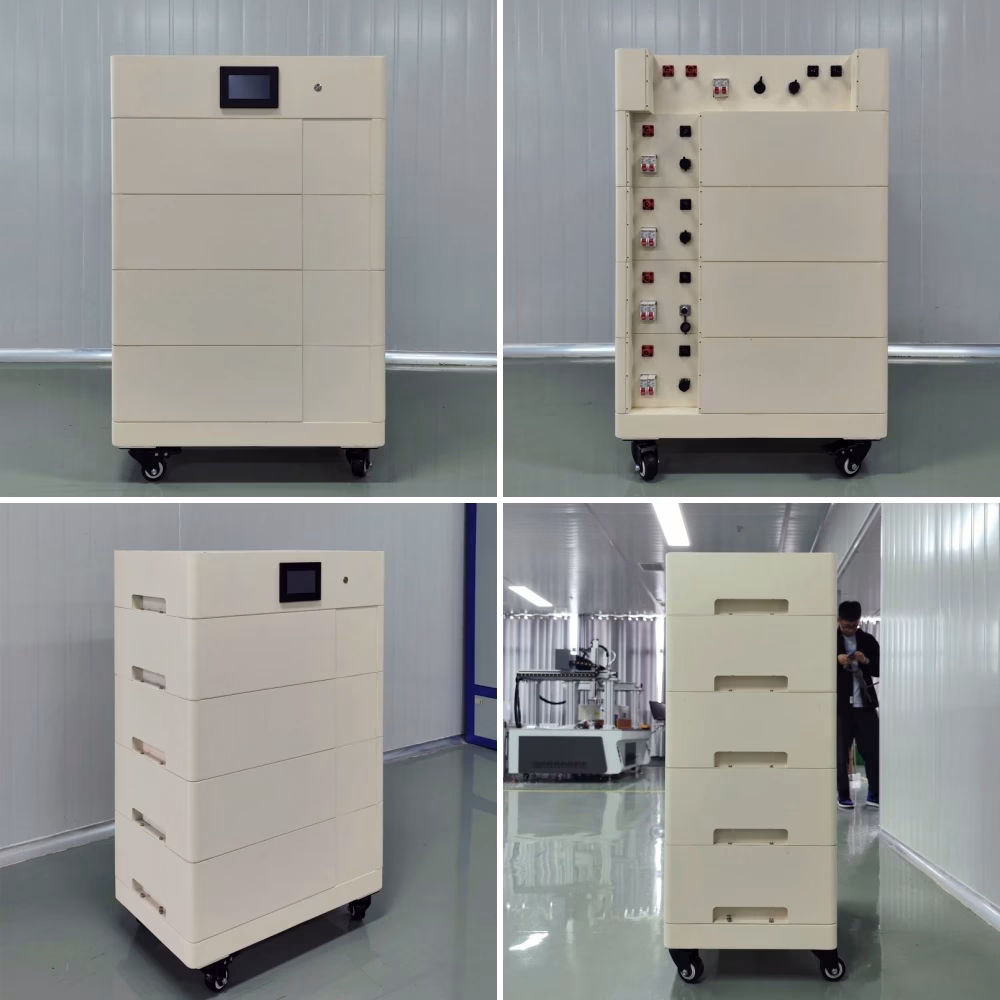

20kWh / 30kWh / 40kWh / 50kWh HV Stacked ESS
- Capacity: 20/30/40/50kwh
- Battery Type: LiFePo4
- Nominal Voltage: 141.6~340.8V
- Life Cycling: 6000 cycles @ 0.5C; 80% DOD
- Certification: MSDS, UN38.3, CE, IEC62619 (Cell), UL (Cell)
- Communication: CAN/RS485
- Net Weight: 96kg*N
- Warranty: 5 to 10 Years (Optional)
Product Features
1. Using A new class A lithium iron phosphate cell, more safe and reliable.
2. Warranty from 5 to 10 years is optional.
3. Longer service life, 6000 Cycles @ 0.5C 80%DOD.
4. With CE, MSDS, UN38.3 and other product certification.
5. Built-in intelligent BMS, real-time monitoring of voltage, current, temperature, protect voltage, current stability, prevent short circuit, overcharge and overdischarge, and equipped with three-level fault warning.
6. Thickness 1.5mm metal sandblasting process box and wall hanging bracket.
7. ROHS certified 6AWG cable, resistant to 200℃ high temperature and 200A current.
8. Die-cast steel handle with weight over 300kg.
9. Compatible with 95% of brand inverters.
10. Stacked design, saving space, convenient parallel installation, can choose universal wheel, easy to move.
Product Specifications
| 20~50kWh LV Stacked Energy Storage Battery | ||||
| Model Capacity | SW-SHV30 | SW-SHV40 | SW-SHV50 | SW-SHV60 |
| Battery Module | 10.24kWh, 200Ah, 51.2V, 96kg, 736*455*258mm | |||
| Battery Type | LiFePo4 | |||
| Number Of Modules | 3 | 4 | 5 | 6 |
| Energy Capacity | 30.72kWh | 40.96kWh | 51.2kWh | 61.44kWh |
| Useable Capacity | 27.6kWh | 36.9kWh | 46.1kWh | 55.3kWh |
| Operating Voltage Range | 141.6~170.4V | 188.8~227.2V | 236~284V | 283.2~340.8V |
| Charge/Discharge Current | 50 [email protected] | |||
| Dimension (mm) | 730*420*880 | 730*420*1140 | 730*420*1310 | 730*420*1660 |
| Weight | 96kg*3 | 96kg*4 | 96kg*5 | 96kg*6 |
| General | ||||
| Operation Temperature | 0℃ to 45℃ | |||
| IP Protection | IP21 | |||
| Installation | Floor installation | |||
| Warranty | 2 to 10 Years (Optional) | |||
| BMS controller athene-BCU | ||||
| BMS | SOC, system voltage, current, cell voltage | |||
| Communication Port | CAN | |||
| Application scenarios | Solar system, power back up, UPS system | |||
| Life Cycling | 6000 cycles @ 0.5C; 80% DOD (0.5C & 25℃) | |||
| Communication Port | CAN/RS485 | |||

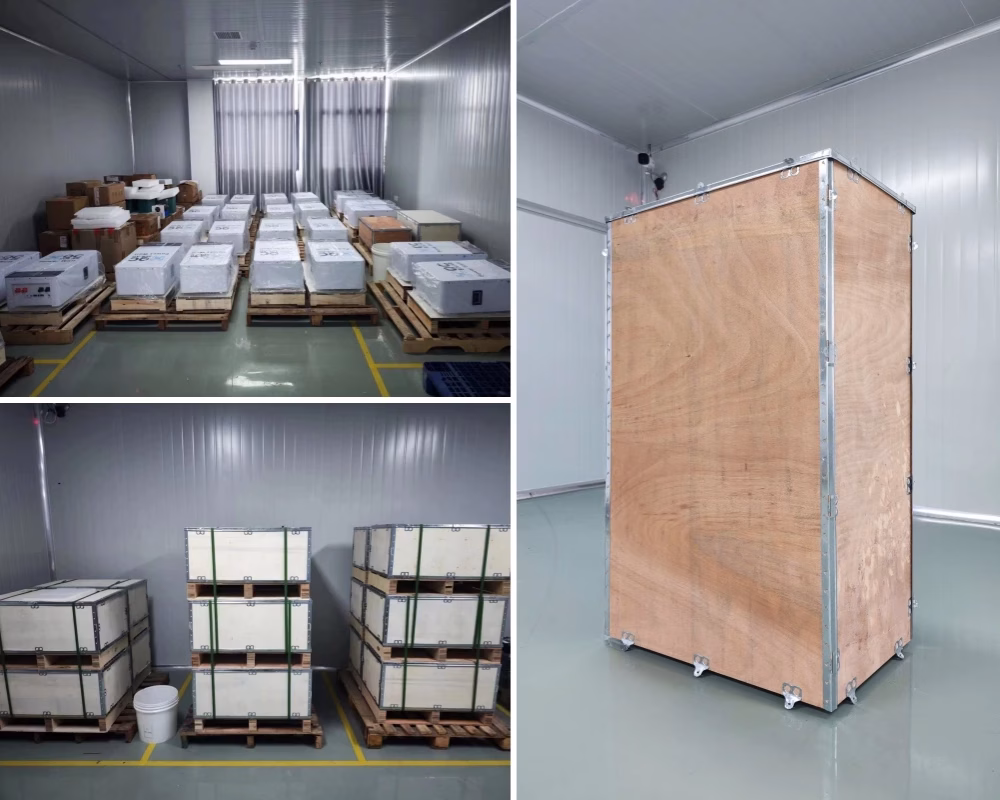

Packing & Shipment
