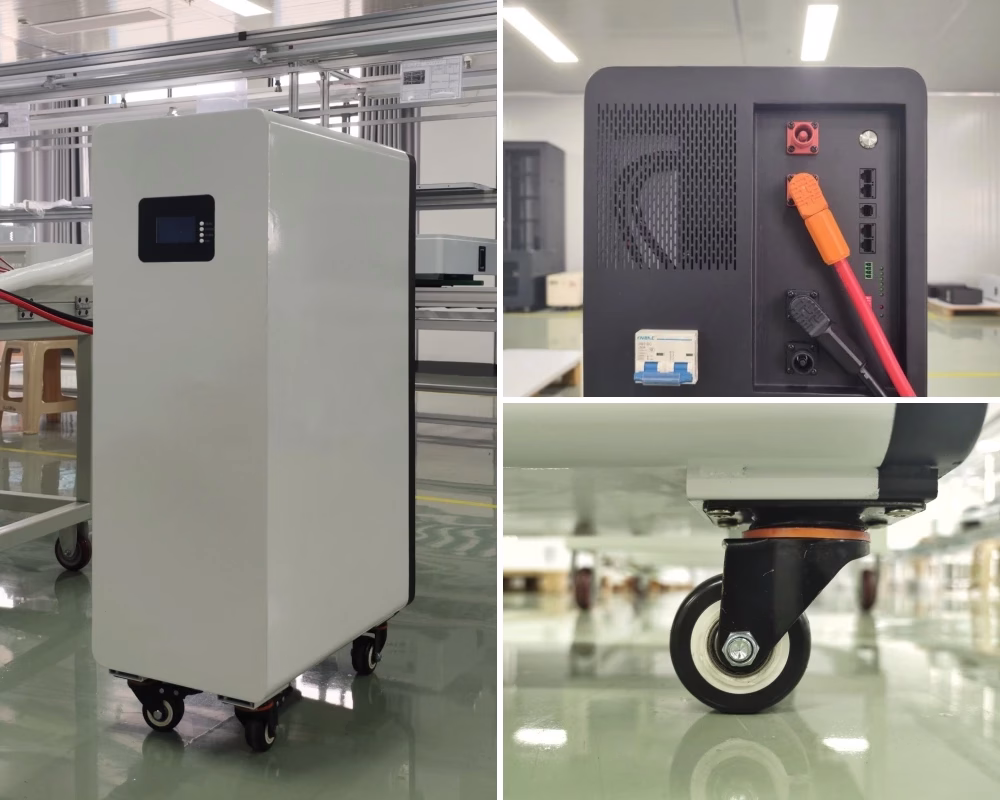

15kWh Mobile Floor Standing Solid-State ESS
15Kwh Mobile Floor-Mounted Solid-State ESS Battery
- Capacity: 300Ah
- Battery Type: LiFePo4
- Nominal Voltage: 51.2V
- Life Cycling: 8000 Cycles @ 0.5C; 80% DOD
- Certification: MSDS, UN38.3, CE, IEC62619 (Cell), UL (Cell)
- Communication: RS232, RS485, CAN
- Net Weight: 155kg
- Warranty: 5 to 10 Years (Optional)
Product Features
1. Using A new class A lithium iron phosphate cell, more safe and reliable.
2. Warranty from 5 to 10 years is optional.
3. Longer service life, 8000 Cycles @ 0.5C 80%DOD.
4. With CE, MSDS, UN38.3 and other product certification.
5. Built-in intelligent BMS, real-time monitoring of voltage, current, temperature, protect voltage, current stability, prevent short circuit, overcharge and overdischarge, and equipped with three-level fault warning.
6. Thickness 1.5mm metal sandblasting process box and wall hanging bracket.
7. ROHS certified 6AWG cable, resistant to 200℃ high temperature and 200A current.
8. Die-cast steel handle with weight over 300kg.
9. Compatible with 95% of brand inverters.
10. Supports 6 devices in parallel.
Product Specifications
| 15kWh Mobile Floor-mounted Solid-state Energy Storage System Battery | |
| Model Capacity | PM15ESS-MSLV |
| Battery type | LiFePo4 Solid-state |
| Capacity Energy | 15.36kWh |
| Capacity (Ah) | 300Ah |
| Battery pack type | 16S1P |
| Suggested SOC | 10~100% |
| Nominal Voltage | 51.2V |
| Max Charging/Discharging Current | 150A |
| BMS | Robust multi point monitoring BMS pre installed |
| Scalable (Parallel function) | Yes, maximum 16 packs |
| Life Cycling (0.5C&25℃) | 8000 cycles @ 0.5C; 80% DOD |
| Warranty | 5 to 10 years (Optional) |
| Operation Temperature | Chrage: 0~45℃, Dischrage: -20~45℃ |
| Storage Temperature | -10~55℃ |
| Net Weight | 155kg |
| Gross Weight | 170kg |
| Dimensions | 945*320*545mm |
| Certifications | MSDS, UN38.3, CE, IEC62619 (Cell), UL (Cell) |
| IP Grade | IP21 |
| Communication | RS232, RS485, CAN |
Packing & Shipment
